i-TMAS
Designed for Static and Dynamic Applications Such as Tank and Vessel Weighing

I-TMAS50T

Maximum Capacity 50 t
Material Stainless 304 Electropolish
Protection Rating IP68
Item Number: 30924618
Overview
Constructed of stainless steel, the i-TMAS Weighing Module is ideal for building industry tanks, coal bunkers, and tanks for liquids and gases. These units come pre-assembled - ensuring ease of installation. Safe, accurate and service-friendly at the same time.
Applications
NA
Display
NA
Operation
NA
Communication
NA
Construction
Stainless steel hermetically sealed load cell, stainless steel mounting hardware
Design Features
150% overload capacity protection
Specifications
Maximum Capacity 50 t
Material Stainless 304 Electropolish
Protection Rating IP68
Metrology III
Net Weight 71 kg
Working Environment -10°C – 40°C, 85%RH, non-condensing
Hazardous Approval N/A
Load Cell Hermetically Sealed
Accessories

Item Number

30904127

Description

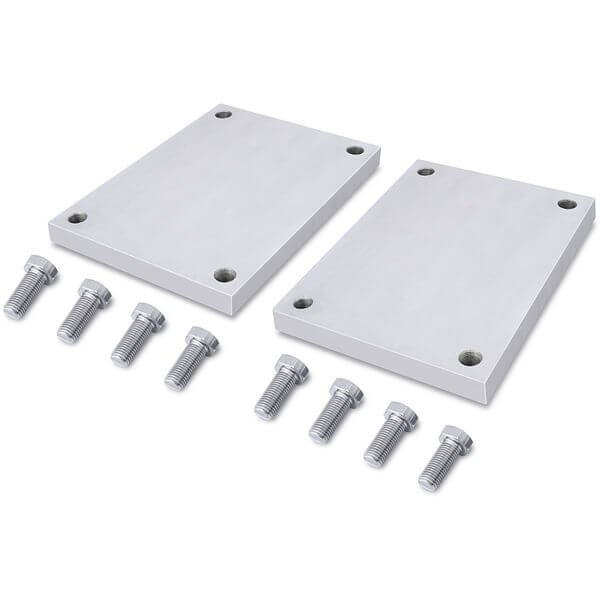

Mounting plate set TMAS 50t SS

Item Number

30579478

Description

Signal Double shield 15m WM

Item Number

30579479

Description

Signal Double shield 30m WM

Item Number

30904133

Description

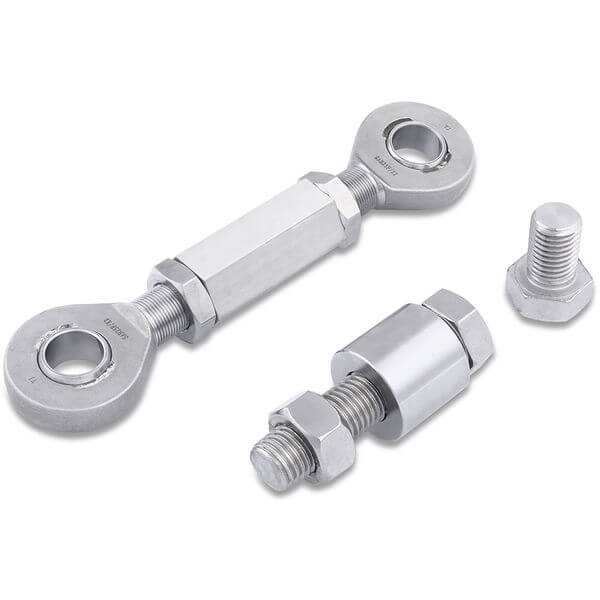

Stabilizer TMAS 10-50t SS
