DF33XW600C1R

Maximum Capacity	600 kg
Readability	0.2 kg
Readability (Certified)	0.2 kg
Item Number:	30787699

Request a Quote ADD TO QUOTE LIST

View All Defender™ 3000 Washdown Floor Scales - i-DF33 Models

Overview
Specs
Accessories
Documents

Overview

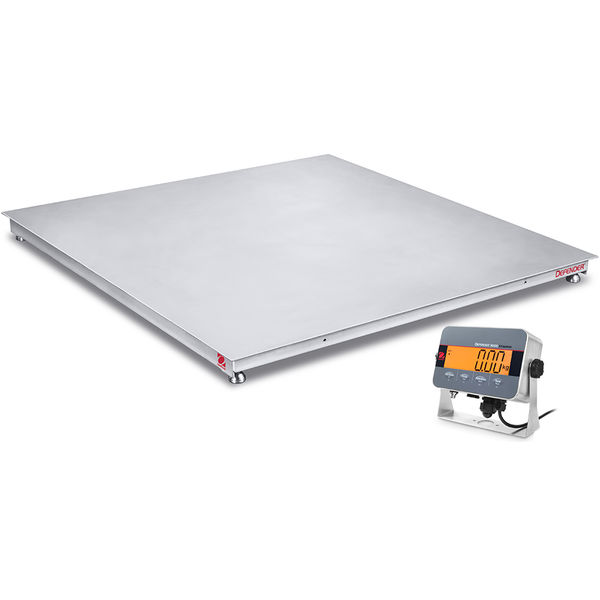

Defender 3000 Series Floor Scales are the value solution for washdown weighing needs in industrial & commercial applications. Their high-quality material and construction are designed to minimize distortion under heavy loads, and ensure years of dependable performance. Available with corresponding ramps and mounting accessories, Defender 3000 floor scales offer a unique combination of value, quality and dependability that you can rely on.

Applications

Weighing, Checkweighing, Counting, Totalization

Display

7 Segment LCD with multicolor backlight

Operation

Internal power supply with power cord (included) or Rechargeable Battery (included)

Communication

Standard RS232 and optional USB Device or Ethernet

Construction

304-grade stainless steel IP66 indicator, 5mm fixed top plate, stainless steel platform, IP65 stainless steel junction box with side access, 4 x IP67 OIML R60 stainless steel load cells, available stainless steel ramp

Design Features

125% overload protection, four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity	600 kg
Readability	0.2 kg
Readability (Certified)	0.2 kg
Platform Size	1,000 mm x 1,000 mm
Battery Life	30 Hours with Rechargeable Battery
Communication	Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Dimensions	1,000 mm x 90 mm x 1,000 mm (LxHxW)
Display	7 Segment LCD with multicolor backlight
Legal for Trade	EC Type Approvable;OIML
Net Weight	115 kg
Outputs	Not Applicable
Platform Construction	Stainless Steel
Power	AC Power (Included);Rechargeable Battery (Included)
Protection Rating	IP 65
Tare Range	To capacity by subtraction
Units of Measurement	Metric Tons;Gram;Kilogram;Pound;Ounce;Pound:Ounce
Working Environment	-10°C – 40°C, 85%RH, non-condensing
