Frontier™ 5000 Series Micro
Dependable Benchtop Micro Centrifuges, Ideal for High-speed Lab Applications

FC5513+R01 230V

Speed Range 200 rpm – 13,500 rpm
Maximum Relative Centrifuge Force (x g) 17,317 g
Maximum Capacity (Rotor) 24 x 1.5 / 2.0 ml
Item Number: 30370691
Overview

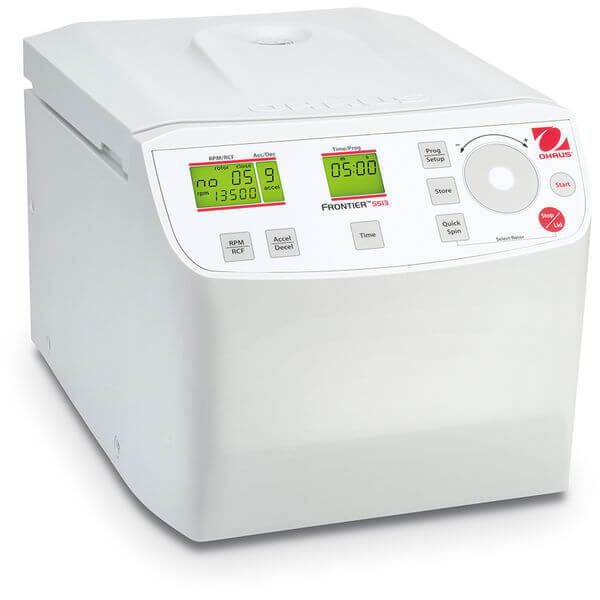

Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
N/A
Construction
Brushless quiet motor, small footprint
Design Features
High sample throughput,multi-safety control, personal program function
Specifications
Speed Range 200 rpm – 13,500 rpm
Maximum Relative Centrifuge Force (x g) 17,317 g
Maximum Capacity (Rotor) 24 x 1.5 / 2.0 ml
Program memories 99
Rotor In Package Not applicable
Acceleration Gear 10
Deceleration Gear 10
Dimensions (HxLxW) 9.3 in x 14 in x 10.9 in (236 mm x 356 mm x 277 mm)
Display LCD with backlight
Lid lock Mechanical
Net Weight 28.9 lb (13.1 kg)
Noise Level ≤60±2 dB(A)
Power AC Power (Included)
Power Consumption 170 W
Pre-cool time Not applicable
Rotor Compatibility Angle 24 x 1.5 ml / 2.0 ml;Angle 24 x 1.5 ml / 2.0 ml Sealable;Hematocrit rotor, 24 × Capillaries;Angle 18 x 2 ml Spin Columns
Rotor Recognition Method Manual
Running Time Quickspin;10 sec to 99 h 59 min 59 sec;Continous
Safety Certification CE;FCC
Working Environment 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
Accessories

Item Number

30472304

Description

Rotor Hematocrit 24xCapillaries V2

Item Number

30472301

Description

Rotor Angle 24x1.5/2.0ml V2

Item Number

30472302

Description

Rotor Angle 24x1.5/2.0ml Sealable V2

Item Number

30472303

Description

Rotor Angle 18x2ml SC
